Gate EC-2015 – 1 Question Paper With Solutions

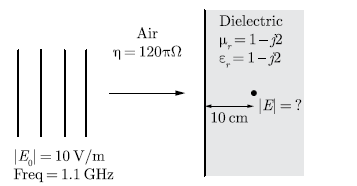

Q. 44 Consider a uniform plane wave with amplitude Gate EC-2015 - 1 Question Paper With Solutions of 10 V/m and 1.1 GHz frequency travelling in air, and incident normally on a dielectric medium with complex relative permittivity Gate EC-2015 - 1 Question Paper With Solutions and permeability Gate EC-2015 - 1 Question Paper With Solutionsas shown in the figure.

Gate EC-2015 - 1 Question Paper With Solutions

The magnitude of the transmitted electric field component (in V/m) after it has travelled a distance of 10 cm inside the dielectric region is _______.

Answer: 1

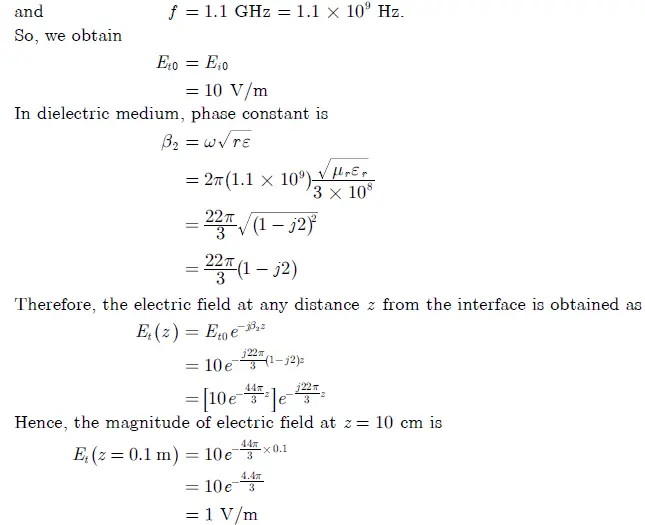

Explanation:
Gate EC-2015 - 1 Question Paper With Solutions
Gate EC-2015 - 1 Question Paper With Solutions
