Gate EC-2015 – 1 Question Paper With Solutions

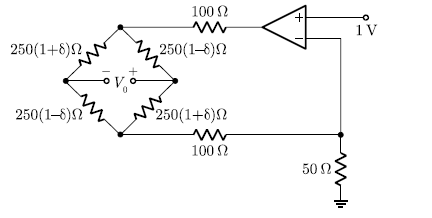

Q. 41 In the circuit shown, assume that the opamp is ideal. The bridge output voltage Gate EC-2015 - 1 Question Paper With Solutions is _______.

Gate EC-2015 - 1 Question Paper With Solutions

Answer: 250.

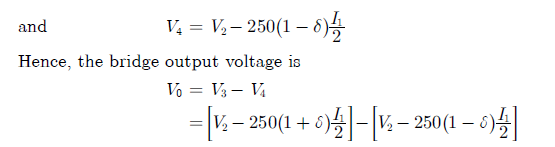

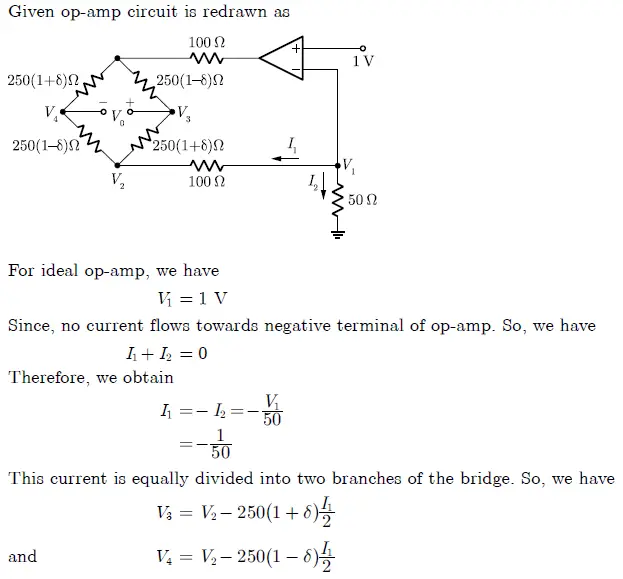

Explanation:

Gate EC-2015 - 1 Question Paper With Solutions

Gate EC-2015 - 1 Question Paper With Solutions

Gate EC-2015 - 1 Question Paper With Solutions

Learn More:   Gate EE-2014-1 Question Paper With Solutions
