Gate EC-2015 – 1 Question Paper With Solutions

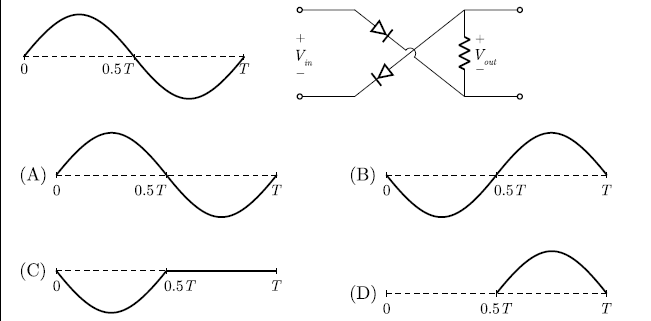

Q. 11 For the circuit with ideal diodes shown in the figure, the shape of the output Gate EC-2015 - 1 Question Paper With Solutions) for the given sine wave input Gate EC-2015 - 1 Question Paper With Solutions will be

Gate EC-2015 - 1 Question Paper With Solutions

Answer: C

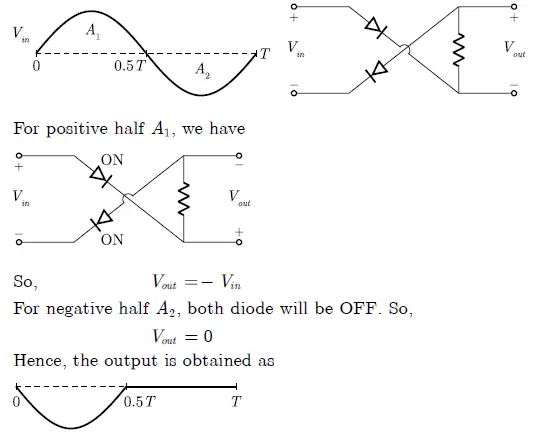

Explanation:

Gate EC-2015 - 1 Question Paper With Solutions
