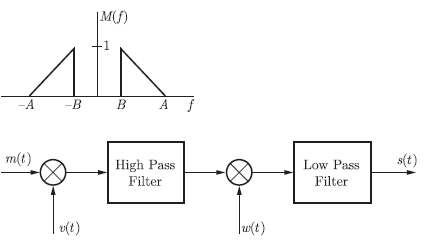

Q. 52 If the figure, M(f) is the Fourier transform of the message signal m(t) where A = 100 Hz and B = 40 Hz. Given
, where
. The cutoff frequencies of both the filters are
The bandwidth of the signal at the output of the modulator (in Hz) is____.
Answer: 60

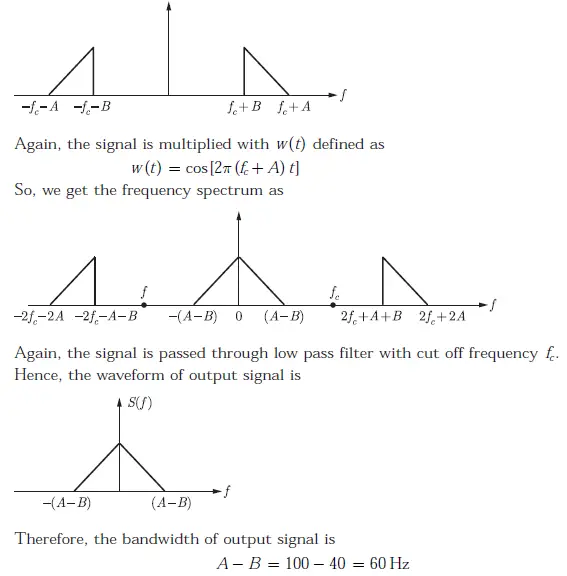

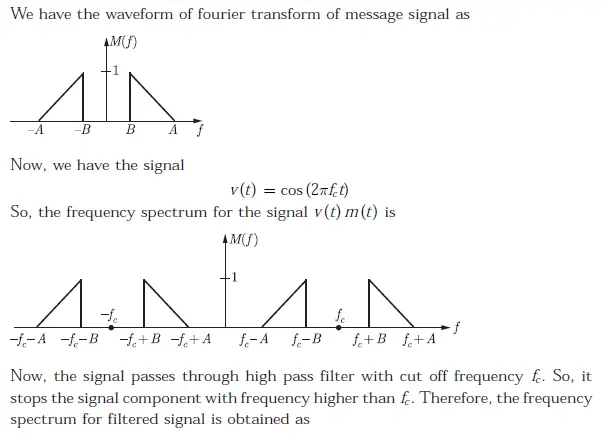

Explanation:
