Gate EC-2014 – 2 Question Paper With Solutions

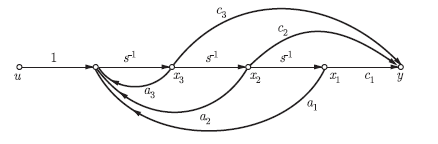

Q. 48 Consider the state space system expressed by the signal flow diagram shown in the figure.

The corresponding system is

(A) always controllable

(B) always observable

(C) always stable

(D) always unstable

Answer: A

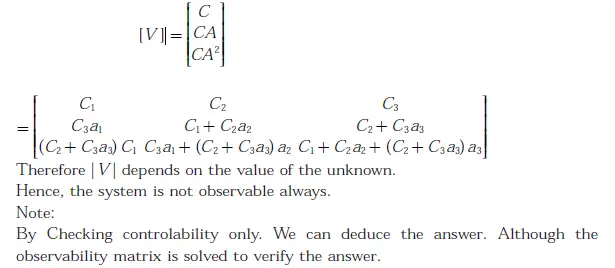

Explanation:
