Q. 49

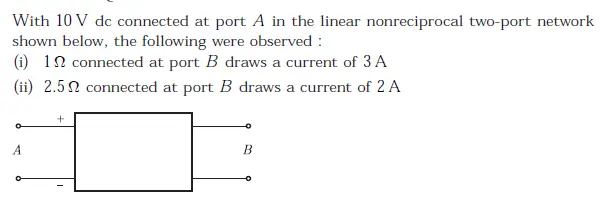

For the same network, with 6 V dc connected at port A,
connected at port B draws 7/3 A. If 8 V dc is connected to port A, the open circuit voltage at port B is
(A) 6 V
(B) 7 V
(C) 8 V
(D) 9 V
Answer: B

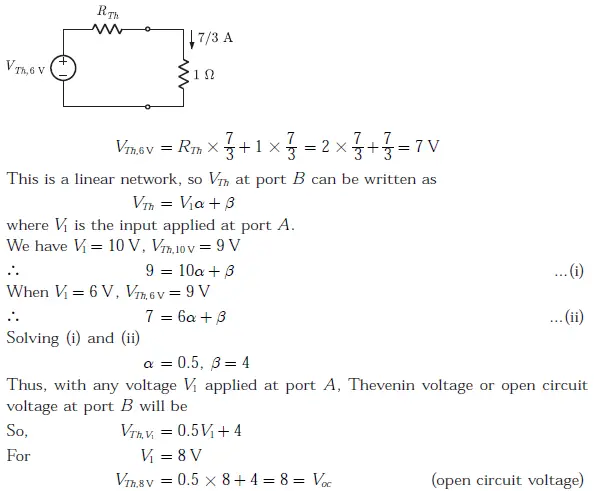

Explanation:
Q. 49
For the same network, with 6 V dc connected at port A, connected at port B draws 7/3 A. If 8 V dc is connected to port A, the open circuit voltage at port B is
(A) 6 V
(B) 7 V
(C) 8 V
(D) 9 V
Answer: B
Explanation:
