Gate EC-2011 Question Paper With Solutions

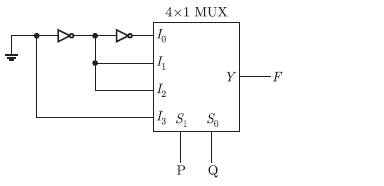

Q. 20 The logic function implemented by the circuit below is (ground implies logic 0)

(A) F = AND(P,Q)

(B) F = OR (P,Q)

(C) F = X NOR (P,Q)

(D) F = X OR (P,Q)

Answer: D

Explanation:
