Gate EC-2010 Question Paper With Solutions

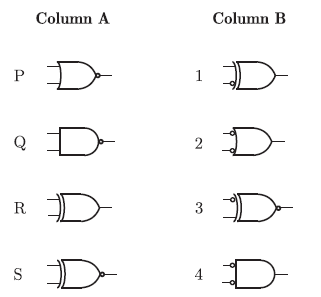

Q. 11 Match the logic gates in Column A with their equivalents in Column B

(A) P-2, Q-4, R-1, S-3

(B) P-4, Q-2, R-1, S-3

(C) P-2, Q-4, R-3, S-1

(D) P-4, Q-2, R-3, S-1

Answer: D

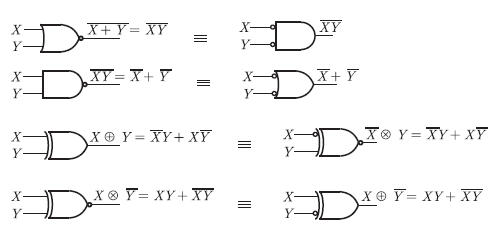

Explanation:
