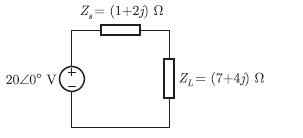

Q. 27 An AC source of RMS voltage 20 V with internal impedance
feeds a load of impedance
in the figure below. The reactive power consumed by the load is
(A) 8 VAR
(B) 16 VAR
(C) 28 VAR
(D) 32 VAR
Answer: B

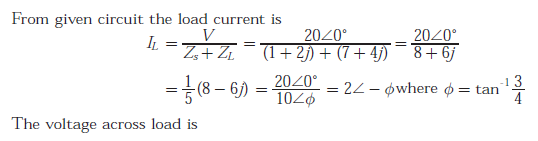

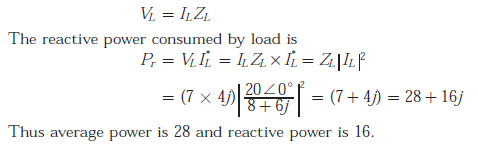

Explanation:
Q. 27 An AC source of RMS voltage 20 V with internal impedance feeds a load of impedance in the figure below. The reactive power consumed by the load is
(A) 8 VAR
(B) 16 VAR
(C) 28 VAR
(D) 32 VAR
Answer: B
Explanation:
