Gate EC-2006 Question Paper With Solutions

Q. 76

The power dissipation across the transistor Q1 shown in the figure is

(A) 4.8 Watts

(B) 5.0 Watts

(C) 5.4 Watts

(D) 6.0 Watts

Answer:   (C)

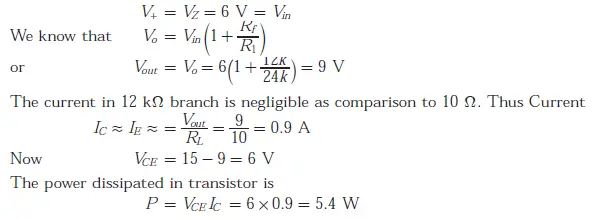

Explanation:
