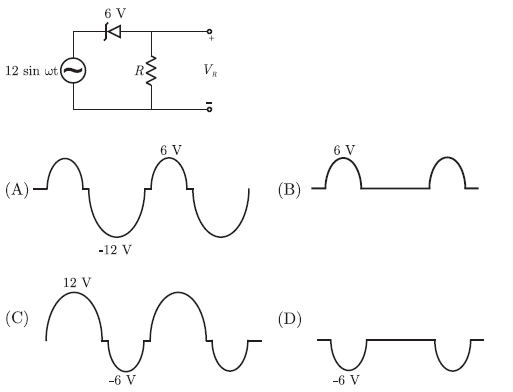

Q. 42 For the circuit shown below, assume that the zener diode is ideal with a breakdown voltage of 6 volts. The waveform observed across R is

Gate EC-2006 Question Paper With Solutions

Answer:   (B)

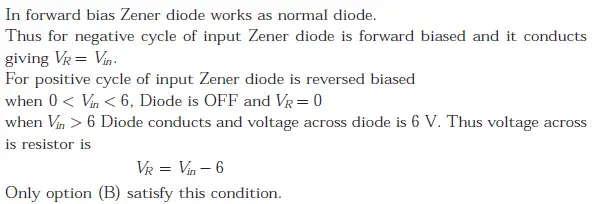

Explanation:
