Q. 11 Choose the correct match for input resistance of various amplifier configurations shown below :

Configuration                                          Input resistance
CB : Common Base                                  LO : Low
CC : Common Collector                            MO : Moderate
CE : Common Emitter                              HI : High

(A) CB – LO, CC -MO, CE – HI

(B) CB – LO, CC – HI, CE -MO

(C) CB -MO, CC – HI, CE – LO

(D) CB – HI, CC – LO, CE -MO

Answer: (B)

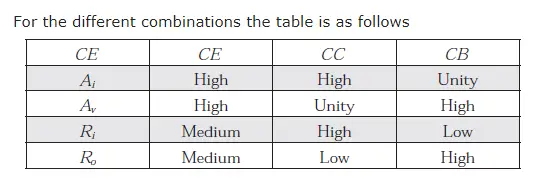

Explanation:

Gate EC-2003 Question Paper With Solutions
