Gate CS-2015-2 Question Paper With Solutions

Q. 58 A half adder is implemented with XOR and AND gates. A full adder is implemented with two half adders and one OR gate. The propagation delay of an XOR gate is twice that of an AND/OR gate. The propagation delay of an AND/OR gate is 1.2 microseconds. A 4-bit ripple-carry binary adder is implemented by using full adders. The total propagation time of this 4-bit binary adder in microseconds is

(A) 19.2 microseconds

Answer: (A)

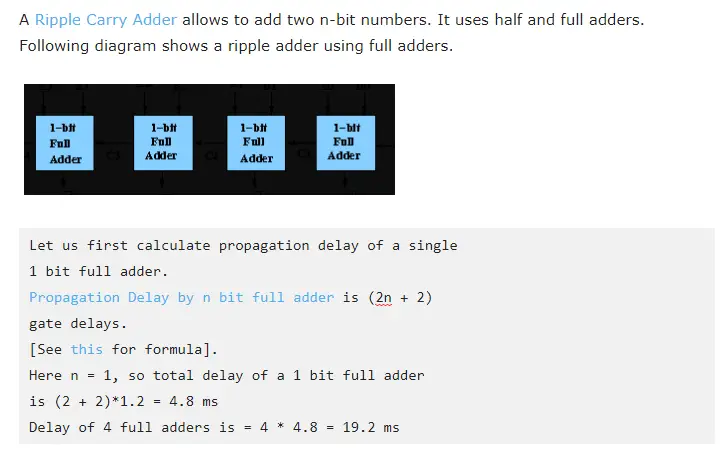

Explanation:

Gate CS-2015-2 Question Paper With Solutions
