Q. 43 Consider the intermediate code given below.
1. i = 1 2. j = 1 3. t1 = 5 * i 4. t2 = t1 + j 5. t3 = 4 * t2 6. t4 = t3 7. a[t4] = –1 8. j = j + 1 9. if j <= 5 goto(3) 10. i = i + 1 11. if i < 5 goto(2)
The number of nodes and edges in the control-flow-graph constructed for the
above code, respectively, are
(A) 5 and 7
(B) 6 and 7
(C) 5 and 5
(D) 7 and 8
Answer: (B)

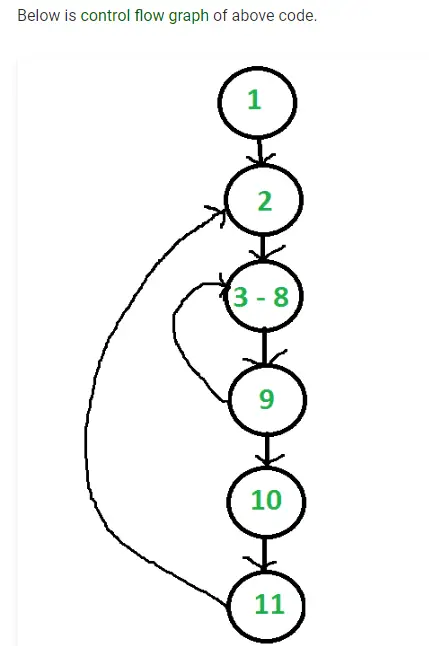

Explanation:
