Gate CS-2014-2 Question Paper With Solutions

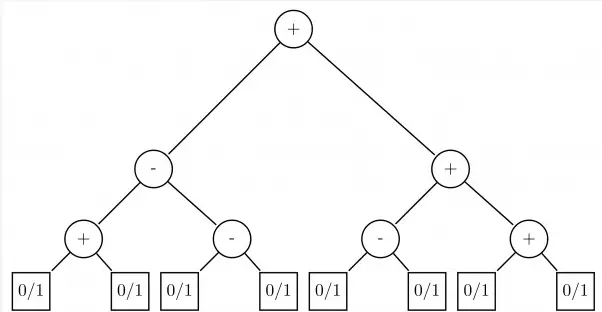

Q. 49 Consider the expression tree shown. Each leaf represents a numerical vale, which
can either be 0 or 1. Over all possible choices of the values at the leaves, the
maximum possible value of the expression represented by the tree is _____.

(A) 4

(B) 6

(C) 8

(D) 10

Answer: (B)

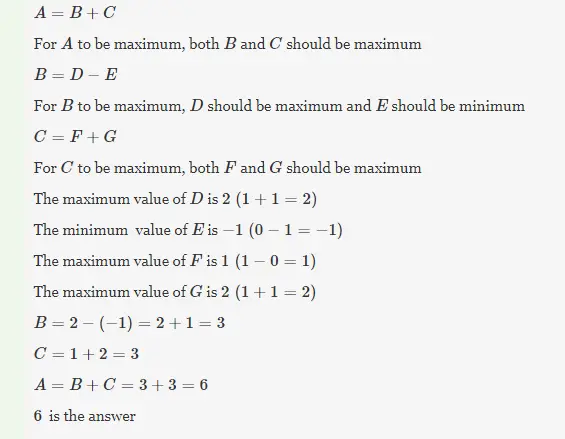

Explanation:
