Q. 38 Delayed branching can help in the handling of control hazards
The following code is to run on a pipelined
processor with one branch delay slot:
I1: ADD R2←R7+R8 I2 : SUB R4← R5-R6 I3 : ADD R1← R2+R3 I4 : STORE Memory [R4]←[R1] BRANCH to Label if R1== 0
Which of the instruction 11,12,13 or 14 can legitimately occupy the delay slot
without any other program modification?
(A) 11
(B) 12
(C) 13
(D) 14
Answer: (D)

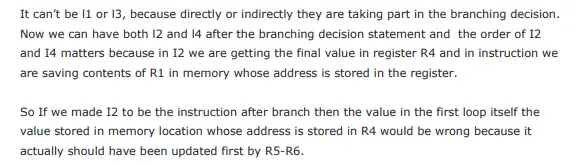

Explanation:
