Q. 32 Consider a pipelined processor with the following four stages
IF: Instruction Fetch ID: Instruction Decode and Operand Fetch EX: Execute WB: Write Bank
The IF, ID and WB stages take one clock cycle each to complete the operation.
The number of clock cycles for the EX stage depends on the instruction. The
ADD and SUB instructions need 1 clock cycle and the MUL instruction need
3 clock cycles in the EX stage. Operand forwarding is used in the pipelined
processor. What is the number of clock cycles taken to complete the following
sequence of instructions?
ADD R2, R1, R0 R2!R1+R0 MUL R4, R3, R2 R4!R3*R2 SUB R6, R5, R4 R6!R5-R4
(A) 7
(B) 8
(C) 10
(D) 14
Answer: (B)

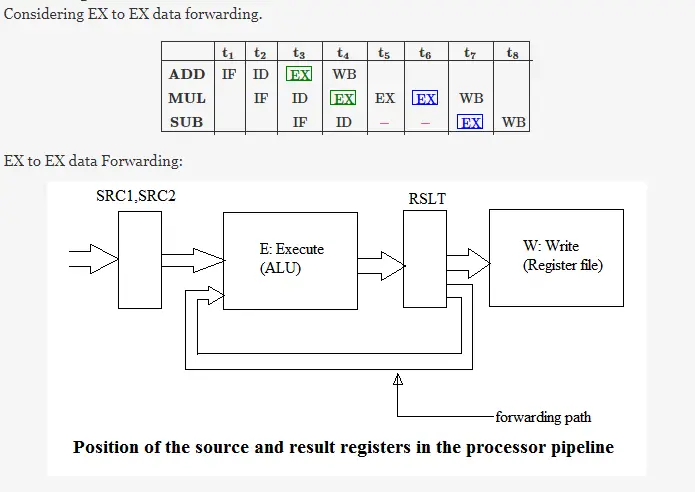

Explanation:
