Gate CS-2005 Question Paper With Solutions
Q. 62 Consider the following circuit involving a positive edge triggered D FF.

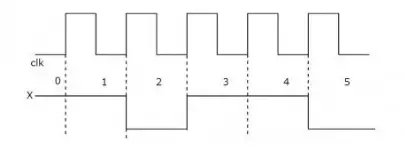

Consider the following timing diagram. Let Ai represent the logic level on the line A in the i-th clock period.
Let A’ represent the complement of A. The correct output sequence on Y over the clock periods 1 through 5 is
(A) A0 Al A1′ A3 A4
(B) A0 Al A2′ A3 A4
(C) Al A2 A2′ A3 A4
(D) Al A2′ A3 A4 A5′
Answer: (A)
Explanation:
