Q. 39 In an SR latch made by cross-coupling two NAND gates, if both S and R inputs

are set to 0, then it will result in

(A) Q = 0,Q‘ = 1

(B) Q = 1,Q‘ = 0

(C) Q = 1,Q‘ = 1

(D) Indeterminate states

Answer: (C)

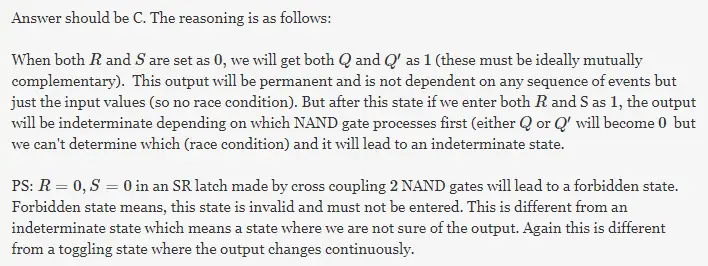

Explanation:
