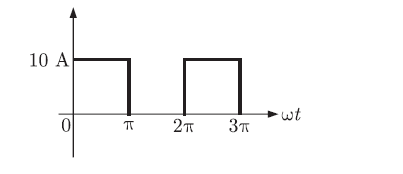

Q. 85 A MOSFET rated for 15 A, carries a periodic current as shown in figure. TheON state resistance of the MOSFET is 0.15
The average ON state loss in the MOSFET is
(A) 33.8 W
(B) 15.0 W
(C) 7.5 W
(D) 3.8 W
Answer:(C)

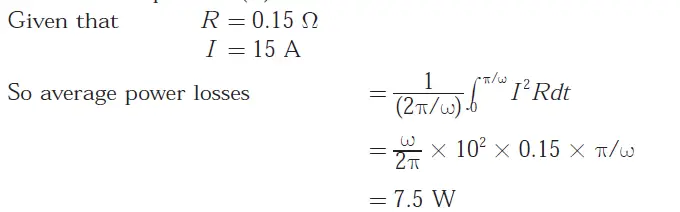

Explanation:
Q. 85 A MOSFET rated for 15 A, carries a periodic current as shown in figure. TheON state resistance of the MOSFET is 0.15 The average ON state loss in the MOSFET is
(A) 33.8 W
(B) 15.0 W
(C) 7.5 W
(D) 3.8 W
Answer:(C)
Explanation:
