Gate EE-2004 Question Paper With Solutions

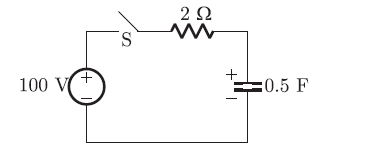

Q. 36 In figure, the capacitor initially has a charge of 10 Coulomb. The current in the circuit one second after the switch S is closed will be

Gate EE-2004 Question Paper With Solutions
(A) 14.7 A

(B) 18.5 A

(C) 40.0 A

(D) 50.0 A

Answer:(A)

Explanation:

Gate EE-2004 Question Paper With SolutionsGate EE-2004 Question Paper With Solutions
